Different Parts of an Umbrella and Their Functions

Understanding the parts of an umbrella and their functions is key when choosing the right umbrella for your needs. Patio umbrellas come in a variety of sizes, colors, and features and are available in many different shapes to suit your needs and taste, including square, rectangular, octagonal, or round. They are generally set up quickly and simply to provide protection from ultraviolet rays and wet weather. However, patio umbrellas share certain basic components, including a base, pole, ribs, material, hub, and other mechanisms to lift or close, and for some, to tilt or rotate. Understanding the different parts can help you choose the right patio umbrella to extend your indoor area to the outdoors for relaxing, dining, and entertaining. To make things simple, we’ve provided descriptions of these components below for your reference.

Patio Umbrella Parts Names

1. Canopy

The canopy is the fabric part of the umbrella that provides shade and shelter. Made from materials like nylon, polyester, or fiberglass, the umbrella canopy is designed to be both water-resistant and durable. Nylon offers a lightweight, quick-drying solution, while polyester is more resistant to fading and weather damage. Fiberglass and carbon fiber can be used for added durability and strength, particularly in larger patio umbrellas. The weave of the canopy fabric also determines its sturdiness and ability to withstand wind, with tighter weaves offering better protection.

2. Shaft

The shaft of the umbrella is the central pole that supports the structure. It runs from the handle to the ferrule and is typically made of metal, carbon fiber, or fiberglass, depending on the umbrella’s design. Wooden shafts are also a classic choice for a traditional or decorative look. A fiberglass shaft is lightweight yet strong, making it ideal for umbrellas exposed to harsh winds. The umbrella shaft is designed to collapse easily for portability, but some high-end models feature reinforced shafts to ensure they don’t bend or break under pressure. There are two primary types of patio umbrellas:

• Center Post Umbrella: The pole extends vertically from the base to the center of the canopy.
• Cantilever Umbrella: The pole is positioned to one side, with a vertical rod connecting to an angled horizontal rod, creating a triangular shape. This design allows for a larger shaded area and prevents the pole from obstructing the space beneath.

3. Handle

The handle is the part of the umbrella that you hold onto. It comes in various designs and materials, including rubber, wood, carbon, and plastic. Crook handles, which form a hook shape, are often used for traditional walking umbrellas, offering a comfortable grip. Some umbrella handles feature ergonomic designs or are customizable with logos or unique finishes.  Metal handles are common in more durable, heavy-duty umbrellas, offering both strength and style.

4. Base

The base secures the umbrella in place. There are several types of umbrella bases, each suitable for different situations:

• Weighted Base: Uses heavy materials to keep the umbrella steady.
• Bolt-Down Base: Secures the umbrella to a fixed surface.
• In-Ground Base: Installed directly into the ground for added stability.

5. Ferrule

The ferrule is the metal tip at the bottom of the shaft, located just above the handle. It serves several functions, including providing support to the shaft and preventing wear. The ferrule also helps with the fold of the umbrella when it’s collapsed, ensuring that the fabric stays intact and doesn’t get damaged.

6. Runner

The runner is the part of the umbrella that slides up and down the shaft. When you open or close the umbrella, the runner moves along the shaft, causing the ribs to expand or collapse. It plays a crucial role in the ease of operation of the umbrella. The runner is usually made of metal or plastic, and its smooth movement ensures the umbrella opens and closes smoothly without sticking.

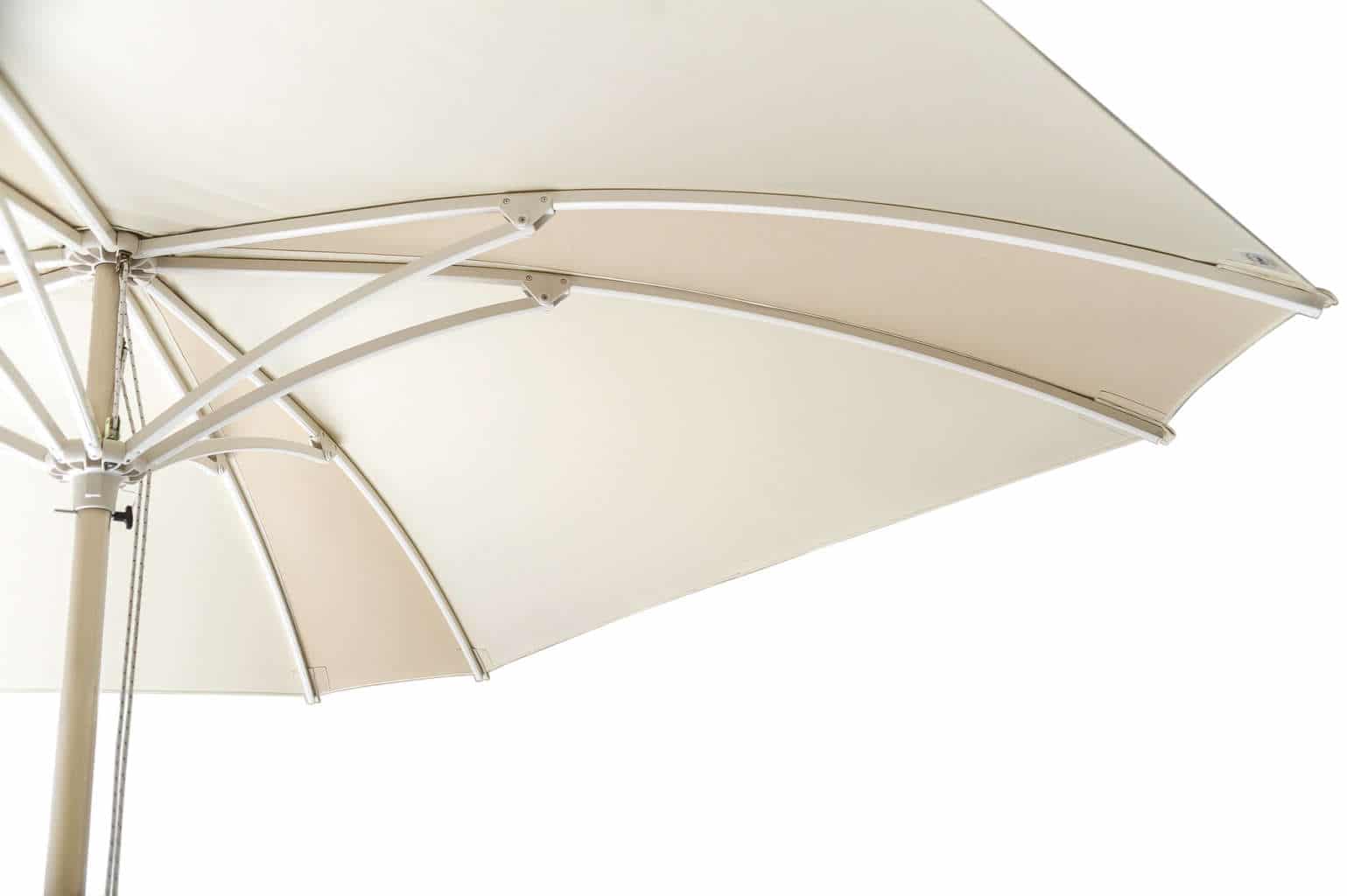

7. Ribs and Stretcher

The ribs hold the canopy in the open position. The main ribs are attached to the top of the umbrella and extend from the center to the outer edge of the fabric. Additional support ribs are connected under the main ribs. With our larger structures, our aluminum ribs are reinforced with an inner aluminum rib. The stretcher connects the ribs to the runner, allowing them to open and close in unison.

8. Notch

The notch is a small feature located on the umbrella’s shaft or the runner. It serves as a locking mechanism, ensuring the umbrella stays open when in use. It can also help secure the umbrella in its closed position when it’s collapsed for storage. Notches help to maintain the umbrella’s structure and prevent it from collapsing when not in use.

9. Finial

The finial is the decorative top piece that anchors the canopy to the pole or rod, completing the umbrella’s structure.

10. Mechanisms/Winches

A lift mechanism raises a hub and supports ribs to open the canopy. Some umbrellas offer a tilt mechanism that also allows the canopy to be tilted to maintain shade as the sun moves throughout the day. For the most versatility, the mechanisms on high-quality cantilever umbrellas allow the canopy to be raised or lowered and tilted to permit movement from left to right, forward and backward, or even a full 360-degree rotation without ever moving the base.

11. Umbrella Accessories

Umbrella accessories are additional features designed to improve the umbrella’s usability or style. For example, some umbrellas come with a coat to protect the canopy when not in use. Others may have a logo printed along the shaft, providing a customized or branded appearance. Some premium umbrellas even come with built-in UV protection or special coatings to make them resistant to fading, mildew, or stains.

Parts of a Patio Umbrella

For patio umbrellas, there are additional parts that make them larger and more stable. These include a cross base, crank lift system, and tilt mechanism. The cross base ensures the umbrella stays grounded, while the crank lift system makes it easier to open or close the umbrella. The tilt mechanism allows the canopy to be adjusted to provide shade at different angles, depending on the position of the sun. With Poggesi patio umbrellas, it takes only a touch and a push to adjust the umbrella for the perfect angle and setting. Let us show you why we are the leaders in “The Art of Creating Shade.” For more information on how understanding the parts of an umbrella can guide you in choosing the best patio umbrella for your space, please contact us today.
